Distance Sensor

Introduction

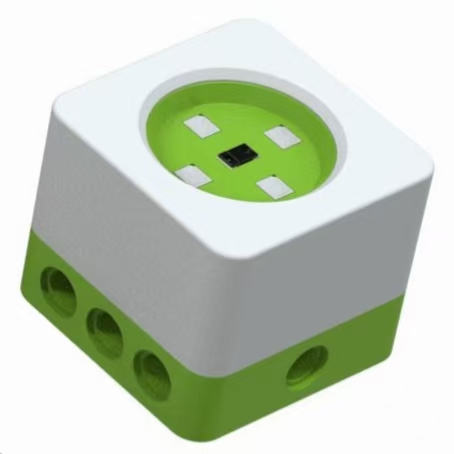

The distance sensor detects the distance between objects and the sensor, with a detection range of 0~255 cm.

Using laser reflection principles, the sensor measures the round-trip time of laser signals to calculate the absolute distance between the sensor and the target. The sensor emits laser at a wavelength of 940 nm and completes distance measurements up to 2 meters in under 30 ms.

Note: The VL6180X measures distance based on Time-of-Flight (ToF)__ technology. Therefore, its measurement accuracy is affected by the target’s surface reflectivity, material properties, and orientation.

  1. Target Reflectivity:__ Black or highly light-absorbing materials can significantly reduce the maximum measurable distance.

  2. Ambient Light:__ Strong sunlight or infrared interference may affect measurement consistency.

  3. Angle of Incidence:__ When the target surface is not perpendicular to the sensor (incidence angle > 10°), reduced reflected light intensity may introduce measurement errors.

  4. Temperature Drift:__ Changes in the sensor’s internal temperature may cause slight variations in the absolute distance measurement.

  5. Optical Cover and Window Material:__ If an external lens or protective window is used, factory calibration and compensation are recommended to ensure optimal measurement accuracy.

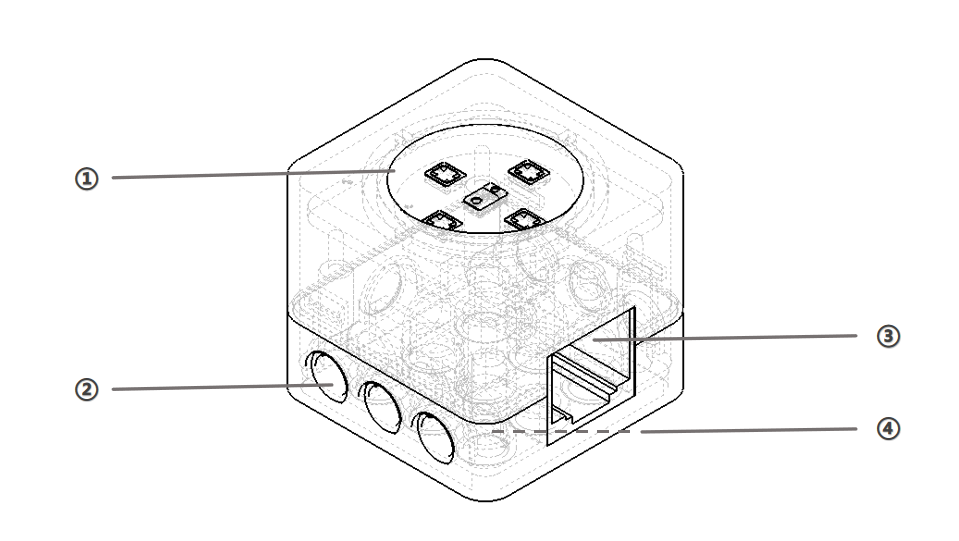

Structure

No.

Name

Description

①

Icon

Green imprint for module type identification

②

Pinhole

Connects and secures building blocks via pinholes

③

RJ11 Port

Applicable to the crystal head connecting cable

④

Groove

Connects and secures building blocks via grooves

Specifications

Item

Description

Name

B0100004

Code

KIDZBricks Distance Sensor

Dimensions

31.8x31.8x28 mm

Weight

15 g

Material

ABS

Operating Voltage

3.3 V

Operating Voltage

RJ11 Port

Communication

I2C

Detection Data

0~255

Usage Instructions

Type

Description

Application Modes

Logic control mode, programming control mode.

Connection Method

Establish a connection with the hub through the Crystal Head Connector.

Status Detection

Detects the distance between objects and the sensor to adjust the corresponding actuator or character accordingly.
